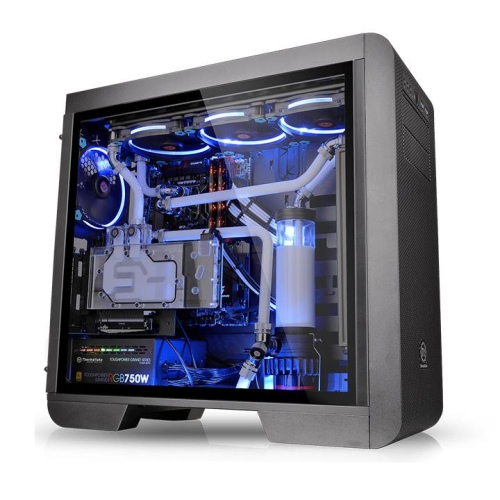

The Core V51 Tempered Glass Edition mid tower chassis features a durable 4mm thick tempered glass window, riser GPU support bracket with optional PCI-e riser cable, three preinstalled 120mm fans, and the outstanding cooling performance. With its unprecedented space for high-end configurations and liquid cooling expansion, the Core V51 TG supports the latest PC hardware, and all high-end GPU cards. The Core V51 TG is an ideal choice for those who are looking for a space-saving chassis with excellent expandability and superior ventilation!
Tt LCS Certified is a Thermaltake exclusive certification applied to only products that pass the design and hardcore enthusiasts standards that a true LCS chassis should be held to. The Tt LCS certification was created so that we at Thermaltake can designate to all power users which chassis have been tested to be best compatible with extreme liquid cooling configurations to ensure you get the best performance from the best features and fitment.
The Core V51 TG features 4mm thick tempered glass to deliver excellent viewing capability. Moreover, unlike any other cases on the market, the enlarged glass window permits users to fully display every interior component of the system and show off their dedication and skill set.
The fully modular drive cages minimize the hassles of installation and removal. Especially, the Core V51 TG utilizes a tool-less drive bay design that allows users to freely interchange the 3.5” and 2.5” hard-drives to suit their particular needs. The modular drive bay concept of “2+5” offers a good ratio for accessories and storage devices.
The Core V51 TG supports motherboards up to standard E-ATX, a tower CPU cooler with maximum height 185mm, and a dual expansion slot VGA of up to 480mm in length without HDD rack. The Core V51 TG still leaves plenty of interior space for cable management even after installing a high-wattage PSU. Moreover, with the tool-free design, users can easily mount up to five 3.5”/2.5” (with HDD cage) and two 5.25” devices into the build at the same time.
Featuring a width of 236mm, the Core V51 TG enables users to build a complete high-end system that supports up to three 140mm case fan or up to one 420mm liquid cooling radiator. Additionally, to improve system ventilation, the Core V51 TG comes with three 120mm fans (two at the front and one at the rear).
Specially designed with dual GPU placement, the Core V51 TG has the support for vertical graphic card layout with dual PCI-E slots design. The PCI-e riser cable is optional. Plus, the included riser GPU support bracket not only can prevent the graphic card from sagging, but also helps to reduce the weight on the motherboard.
Thermaltake PCI-e X16 Riser Cable (Optional) – Support a wide range of GPU solutions.
*Note: Suggested VGA thickness up to 50mm(2.5 -slot reference card standard) with 7mm space for ventilation.
|
||||||||||||||||||||||||||||||||||||||||||
|
||||||||||||||||||||||||||||||||||||||||||
|
||||||||||||||||||||||||
|
||||||||||||||||||||
| P/N | CA-1C6-00M1WN-03 |
|---|---|
| Séries | Core |
| TYPE DE BOITIER | Mid Tower |
| DIMENSIONS (H x L x P) | 540 x 236 x 560 mm (21.3 x 9.3 x 22 inch) |
| POIDS NET | 12.3 kg |
| PANNEAU LATÉRAL | Tempered Glass x 1 |
| COULEUR | Exterior & Interior : Black |
| MATÉRIEL | SPCC |
| SYSTÈME DE REFROIDISSEMENT | Front (intake) : 120 x 120 x 25 mm Turbo fan (1000rpm, 16dBA) x 2 Rear (exhaust) : 120 x 120 x 25 mm Turbo fan (1000rpm, 16dBA) |
| BAIES DE LECTEUR | -Accessible 2 x 5.25’’ -Hidden 5 x 3.5’’ or 5 x 2.5’’ |
| FENTES D'EXTENSION | 8 |
| CARTES MÈRES | 6.7” x 6.7” (Mini ITX), 9.6” x 9.6” (Micro ATX), 12” x 9.6” (ATX), 12” x 13” (Extend ATX) |
| LCS Upgradable | Supports 1/2”、3/8”、1/4” water tube |
| PORT E/S | USB 3.0 x 2, HD Audio x 1 |
| Bloc Alimentation | Standard PS2 PSU (optional) |
| SOUTIEN DES VENTILATEURS | Front: 1 x 120mm or 2 x 120mm or 3 x 120mm 1 x 140mm or 2 x 140mm 1 x 200mm Top: 1 x 120mm or 2 x 120mm or 3 x 120mm 1 x 140mm or 2 x 140mm or 3 x 140mm 1 x 200mm or 2 x 200mm Rear: 1 x 120mm or 1 x 140mm Bottom: 1 x 120mm or 2 x 120mm |
| SUPPORT RADIATEUR | Front: 1 x 120mm or 1 x 240mm or 1 x 360mm 1 x 140mm or 1 x 280mm or 1 x 420mm Top: 1 x 120mm or 1 x 240mm or 1 x 360mm 1 x 140mm or 1 x 280mm or 1 x 420mm Rear: 1 x 120mm Bottom: 1 x 120mm or 1 x 240mm |
| AUTORISATION | CPU cooler height limitation: 185mm VGA length limitation: 310mm(with HDD rack) 480mm(without HDD rack) PSU length limitation: 220mm (With Bottom Fan) |
User Manual
- File Name
- La description
- Size
- Version
- Release Date
-
Manual
- Multi-language
- 5.8 MB
- 2017-03-17
