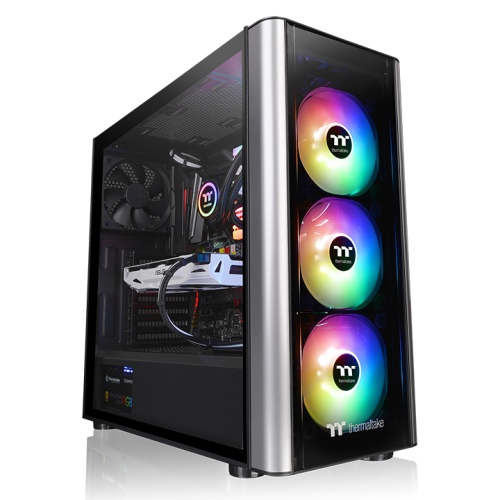

Thermaltake Level 20 MT ARGB is the premium mid tower synchronized with motherboard in the level 20 family. Level 20 MT ARGB features enlarged side panel window, ATX motherboard support and a power cover.
The Level 20 MT ARGB comes preinstalled with three 120mm 5V ARGB front fans and one 120mm rear fan. The front fans are addressable to deliver 16.8 million-color RGB illumination and unparalleled ventilation. This model comes ready to sync with RGB capable motherboards from ASUS, GIGABYTE, MSI, ASRock, and BIOSTAR.
The Level 20 MT ARGB takes our latest case innovations and wraps them in an ultra-modern style that’s utterly unique in the case market today. Stand out from the crowd with the Level 20.
- The image is for reference only.
- Three 120mm 5V addressable ARGB front fans and one 120mm standard rear fan are included.
To continue achieving the corporate mission of delivering the perfect user experience, Thermaltake developed “TT Premium” with the essence of combining supreme quality products with a new logo design. TT Premium is far more than just a guarantee of quality. Behind the name, it represents the passion in DIY, Modding and Thermaltake’s desire to be the most innovative brand in the PC hardware market. To satisfy the demand of the high-end PC users, TT Premium follows its core values of Excellent Quality, Unique Design, Diverse Combinations and Boundless Creativity to provide a high performance PC product for every enthusiast.
Tt LCS Certified is a Thermaltake exclusive certification applied to only products that pass the design and hardcore enthusiasts standards that a true LCS chassis should be held to. The Tt LCS certification was created so that we at Thermaltake can designate to all power users which chassis have been tested to be best compatible with extreme liquid cooling configurations to ensure you get the best performance from the best features and fitment.
- The image is for reference only.
Preinstalled with three 120mm 5V ARGB front fans featuring hydraulic bearing, 9 addressable LEDs and 16.8 million-color illumination to guarantee high airflow and custom system designs to show off your PC design skills. The 5V ARGB fans can be controlled using a simple interface built into the I/O panel that cycles through 7 different lighting modes and a range of different color options.
The left side of the Level 20 MT ARGB features a full length 4mm thick tempered glass panel, which is more durable and less prone to scratches and dust than acrylic panels.
The Level 20 MT ARGB is designed with a power cover, which can be used to organize unused cables to make for a tidy-looking system.
- The image is for reference only.
- Three 120mm 5V addressable ARGB front fans and one 120mm standard rear fan are included.
Fitted with a superb top filter, side filter and bottom PSU filter. Providing excellent protection and reduction against dirt and dust.
- 120mm
- 140mm
- 120mm
- 240mm
- 360mm
| 120mm | 240mm | 360mm | 140mm | 280mm | 420mm | |
|---|---|---|---|---|---|---|
| Front | ● | ● | ● | - | - | - |
| Top | - | - | - | - | - | - |
| Rear | ● | - | - | - | - | - |
| Side | ● | ● | - | - | - | - |
(Water 3.0 and Floe series)
| Performer | Pro | 240 Series | 360 Series | 140 Series | 280 Series | |
|---|---|---|---|---|---|---|
| Front | ● | ● | ● | ● | - | - |
| Top | - | - | - | - | - | - |
| Rear | ● | ● | - | - | - | - |
| Side | ● | ● | ● | - | - | - |
| 120mm | 140mm | 200mm | |
|---|---|---|---|
| Front | 3 | - | - |
| Top | 2 | 1 | - |
| Rear | 1 | - | - |
| Bottom | 2 | - | - |
| 120mm | 140mm | 200mm | |
|---|---|---|---|
| PURE FAN Series | ● | ● | - |
| Riing FAN Series | ● | ● | - |
Sync with Motherboard RGB Software
Designed to synchronize with ASUS Aura Sync, GIGABYTE RGB Fusion, MSI Mystic Light Sync, and ASRock Polychrome. It supports motherboards with a 5V addressable RGB header, allowing you to control the lights directly from the software mentioned above without installing any extra lighting software or controllers. For more details, please visit ASUS, GIGABYTE, MSI, and ASRock official websites.
-
Aura Addressable Header
ASUS -
Digital Pin Header
GIGABYTE -
JRAINBOW Header
MSI -
Addressable RGB LED Header
ASRock
| Category | Caution |
|---|---|
| Chassis, ARGB Fan, ARGB AIO |
|
| RGB Memory, VGA Waterblock, Distro Plate |
|
| P/N | CA-1M7-00M1WN-00 |
|---|---|
| Séries | Level 20 |
| TYPE DE BOITIER | Mid Tower |
| DIMENSIONS (H x L x P) | 455 x 204 x 471mm (17.9 x 8.0 x 18.54 inch) |
| POIDS NET | 6.75 kg / 14.88 lb |
| PANNEAU LATÉRAL | 4mm Tempered Glass x 2 (Left & Front) |
| COULEUR | Exterior & Interior : Black |
| MATÉRIEL | SPCC |
| SYSTÈME DE REFROIDISSEMENT | Front (Intake): 120 x 120 x 25mm Addressable RGB fan (1000rpm, 27.2 dBA) x 3 Rear (exhaust): 120 x 120 x 25 mm fan (1000rpm, 26 dBA) x 1 |
| BAIES DE LECTEUR | 1 x 2.5’’(HDD Bracket); 2 x 2.5” 2 x 3.5’’ or 2.5”(HDD Cage); 1 x 2.5”(HDD Bracket) |
| FENTES D'EXTENSION | 7 |
| CARTES MÈRES | 6.7” x 6.7” (Mini ITX), 9.6” x 9.6” (Micro ATX), 12” x 9.6” (ATX) |
| PORT E/S | USB 3.0 x 2, HD Audio x 1, RGB Switch x 1 |
| Bloc Alimentation | Standard PS2 PSU (optional) |
| SOUTIEN DES VENTILATEURS | Front: 3 x 120mm Top: 2 x 120mm, 1 x 140mm Rear: 1 x 120mm Right Side(In front of M/B Tray): 2 x 120mm Bottom(On the power cover): 2 x 120mm |
| SUPPORT RADIATEUR | Front: 1 x 360mm Rear: 1 x 120mm Right Side(In front of M/B Tray): 1 x 240mm |
| AUTORISATION | CPU cooler height limitation: 170mm PSD length limitation: 170mm VGA length limitation: 260mm(With radiator on the right side) 366mm(Without radiator on the right side) |
User Manual
- File Name
- La description
- Size
- Version
- Release Date
-
Level 20 MT ARGB Manual
- 2023-09-13
