Litepower 650W (230V) Litepower 650W (230V) Litepower 650W (230V) Litepower 650W (230V) Litepower 650W (230V) Litepower 650W (230V)
Litepower 650W (230V)

Litepower 650W (230V)

Out of stock
P/N
LTP-0650P-2
49,99 € (included VAT)

Litepower Series LTP-0650P-2 – 650W APFC 230V PSU

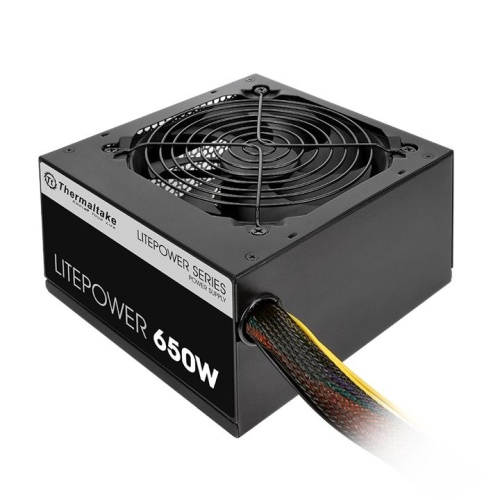

Thermaltake Litepower 650W (230V)

Incorporating various high-quality components, the new Litepower Series – rated from 350W to 650W – saves energy through its high efficiency up to 85% and accommodates any build with the most demanding requirements. An embedded intelligent cooling fan delivers excellent airflow at an exceptionally low noise level. In addition, the single +12V rail design enables non-stop usage with stable and reliable performance.

Ultra Quiet Fan

Litepower Series adopts 120mm cooling fan delivers excellent airflow at an exceptionally low noise level.

Cables with High Flexibility

Users are able to properly route the cables in optimal location to prevent airflow blockage. Extra-long EPS/ATX 12V 4+4pin CPU cable (550mm) guarantees sufficient lengths of cables to the build, especially full-tower chassis. Sleeved 24pin cable makes cable management easier, reducing clutter and increasing airflow inside the chassis.

High-Quality Components

High quality components enable non-stop usage with stable and reliable performance, no more capacitor explosion and leakage

Massive and Dedicated +12V Output

Litepower Series is equipped with powerful +12V rails, superior performance under all types of system loading. Please see the output specification below:

AC INPUT

Input Voltage: 230V
Input Current: 9A max
Frequency: 50Hz-60Hz

DC OUTPUT +3.3V +5V +12V -12V +5Vsb
Max Output Current 23A

17A

48A

0.5A

2.5A
Max Output Power

110W

576W

6W

12.5W

Total Power

650W

More Information
P/N LTP-0650P-2
watts 650W
Ventilateur RGB Non
Format ATX
Model LTP-650AL2NK
Type ATX 12V 2.3
Max. Output Capacity 650W
COULEUR Black
Dimension ( W / H / D ) 150mm x 86mm x 140mm
PFC (Power Factor Correction) Active PFC
Power Good Signal 100-500 msec.
Hold Up Time >16msec
Input Current 9A
Input Frequency Range 50Hz - 60Hz
Input Voltage 230V
Operating Temperature +5℃ to +35℃
Operating Humidity 20% to 85%,non-condensing
Storage Temperature -40℃ to +55℃
Storage Humidity 10% to 95%, non-condensing
SYSTÈME DE REFROIDISSEMENT 120mm Fan: 1800±10% RPM
MTBF 100,000 hrs minimum
Safety Approval CE, TUV SUD, CB, EAC and RCM certified.
PCI-E 6+2pin 6+2pin PCI-E Connector x 2

User Manual

  • File Name
  • La description
  • Size
  • Version
  • Release Date
  • Manual
  • Multi-language
  • 4.4 MB
  • 2016-01-13
