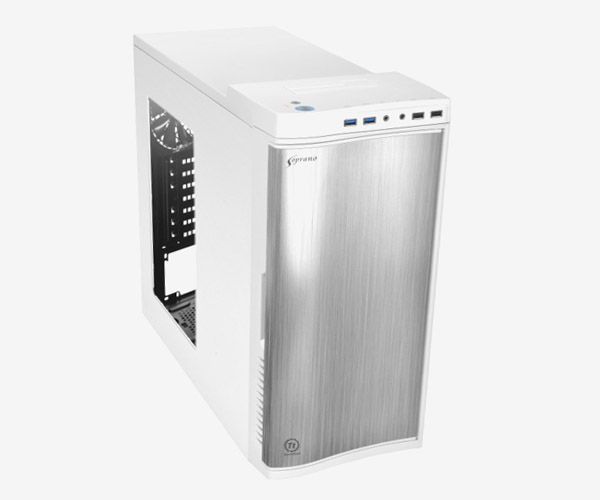

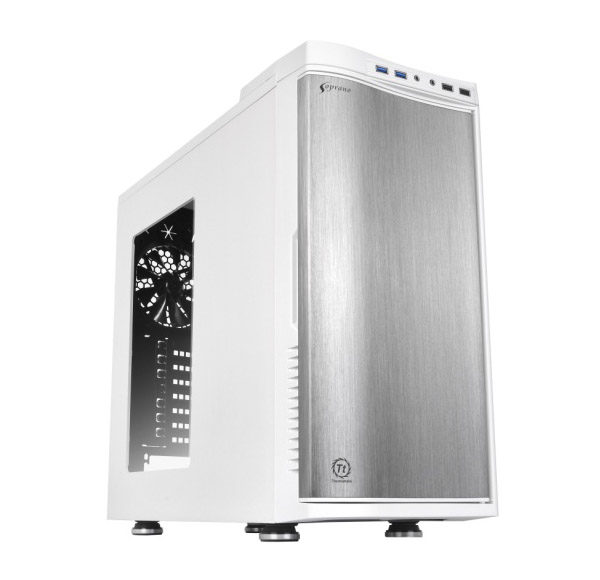

Thermaltake new Soprano mid-tower windowed chassis – Snow Edition
The new Soprano Snow edition windowed chassis is built with contemporary design essences. A simple and elegant mid-tower that seeks to blend into designers’ lavish furnishing with the aid on surpassing the intriguing modern lifestyle.

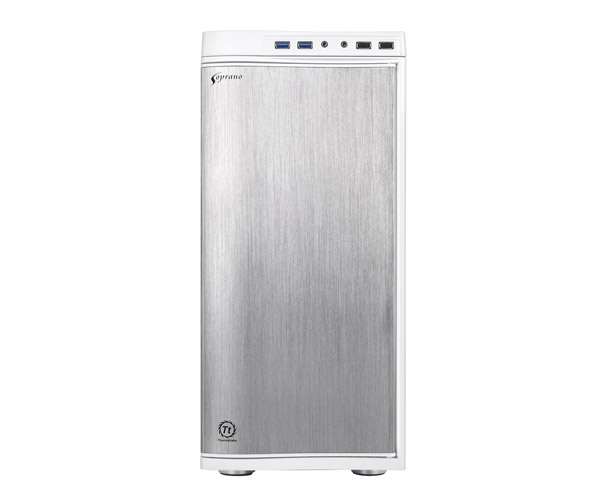

Simple Design
Built with brushed aluminum front door panel to mask the extrusive drive devices, not only unify the appearance, but also provide a simple yet sophisticate aesthetic.
Handy I/O ports
The front-top panel has implemented two of latest data transfer SuperSpeed USB 3.0 ports along with two USB 2.0 ports, a HD microphone and headset jacks, to grand direct access when needed.

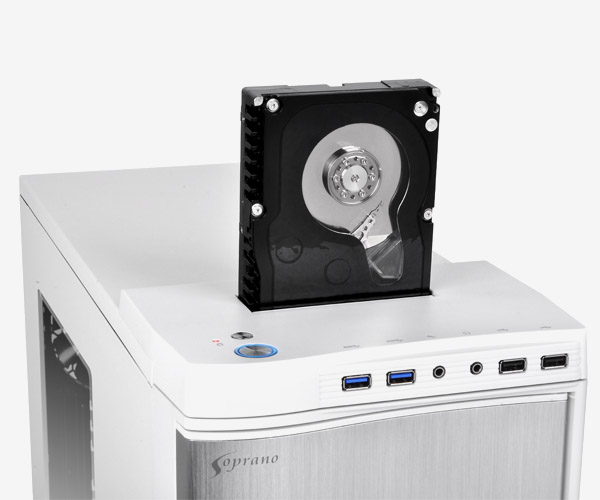

Easy Hot Swap
Top-mounted 2.5” or 3.5”HDD Docking Station enables blazing fast file transfer and effortless hot-swap drive replacement design for easy setup or removal of HDD.

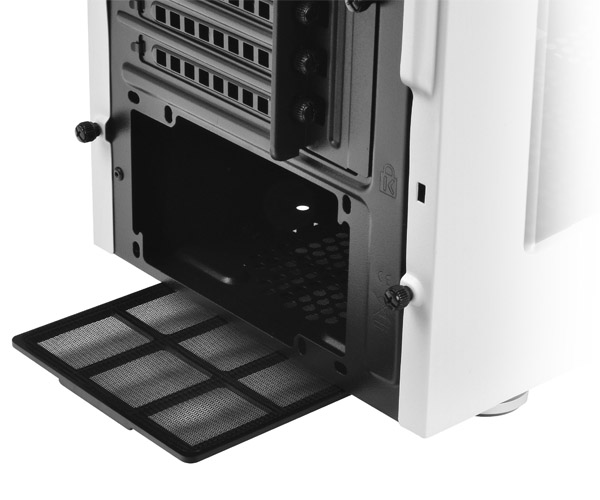

Advanced Ventilation
In order to keep the interior dust free, all intake ventilation holes come with dust protection including removable dust filters at the front and bottom of the chassis. Preinstalled one of 120mm back fan and a front 200mm fan with blue LED optimize system ventilation.

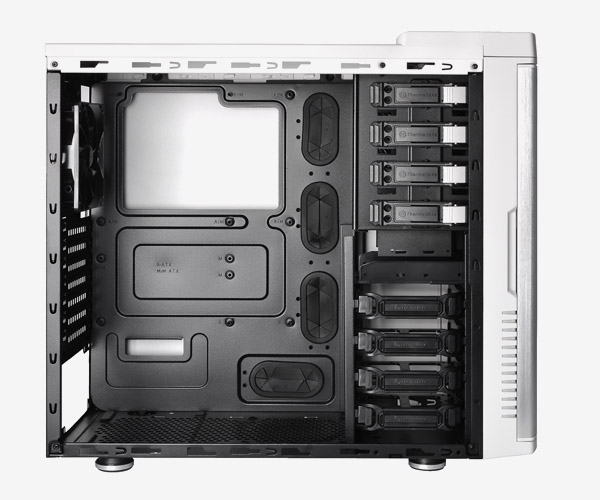

Innovative tool-less design
The latest tool-less innovation with 5.25” & 3.5” tool-free drive bay design minimized the hassles of installing ODD and HDD devices.

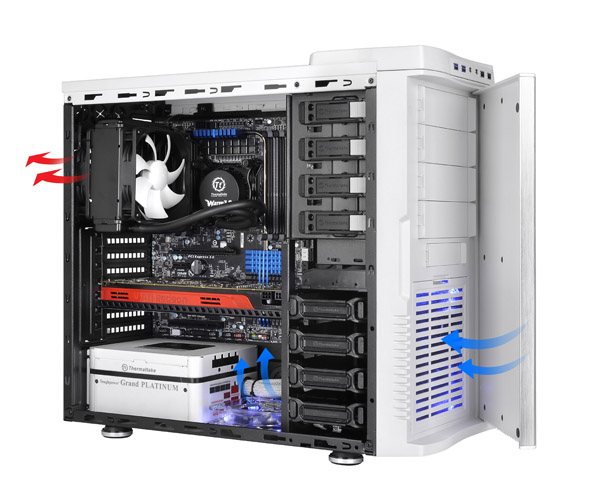

High-end Complete System on the go
Enables user to build up a complete high-end solution with ease with 120mm radiator liquid cooling system and extra long graphic card supported to protect user’s hardware and increase CPU’s overclocking potential, mostly importantly delivers outstanding cooling efficiency in the entire case.
| P/N | VO900M6W2N |
|---|---|
| Séries | Autres |
| TYPE DE BOITIER | Mid Tower |
| DIMENSIONS (H x L x P) | 460 x 220 x 510 mm (18 x 8.7 x 20 inch) |
| POIDS NET | 8.3 kg/18.3lb |
| PANNEAU LATÉRAL | Transparent Window |
| COULEUR | Exterior & Interior : White & Black |
| MATÉRIEL | SECC |
| SYSTÈME DE REFROIDISSEMENT | Front (intake) : 200 x 200 x 20 mm Blue LED fan x 1 (600rpm, 13dBA) Rear (exhaust) : 120 x 120 x 25 mm Turbo fan (1000rpm,16dBA) Bottom (Intake) : (optional) 120 x 120 x 25 mm |
| BAIES DE LECTEUR | - Accessible:4 x 5.25’’, 1 x 3.5’’ - Hidden:5 x 3.5’’ or 2.5’’ - HDD Docking:1 x 3.5’’ or 2.5’’ |
| FENTES D'EXTENSION | 7 |
| CARTES MÈRES | 9.6” x 9.6” (Micro ATX), 12” x 9.6” (ATX) |
| LCS Upgradable | Supports 1/2”、3/8”、1/4” water tube |
| PORT E/S | USB 3.0 x 2, USB 2.0 x 2, HD Audio x 1 |
| Bloc Alimentation | Standard PS2 PSU |
| Other | CPU cooler height limitation: 170mm VGA length limitation: 315mm |
