Riing Silent 12 Red CPU Cooler
The latest Riing Silent 12 CPU cooler is with PWM function, designed for use with high-end RAM and motherboards.
A 120mm fan fitted to enhance the airflow produces impressive cooling performance with an optimized 11 fan-blade design. Hydraulic bearings for silent operation guarantee ultra-low noise. The patented LED ring maintains color and brightness uniformity, and the lighting effect is visible from all sides and angles.

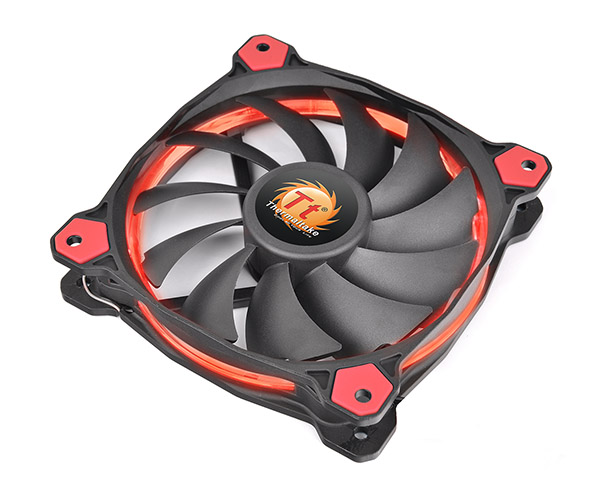

Eleven Fan Blade Design
Eleven fan blades are engineered to create large volume of air passing through the heatsink at any angle and provide the best balance between silent and performance.

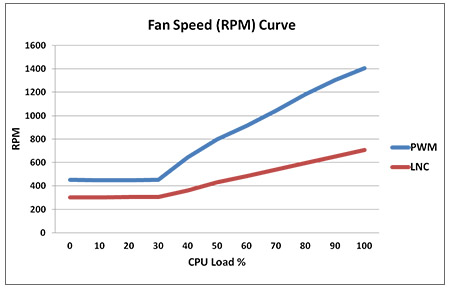

Riing Silent 12 is with PWM function which allows the motherboard to run the fan precisely at its necessary speed. This guarantees the required cooling and minimizes the noise level.
Wind Blocker Frame
To achieve maximum cooling performance in all applications, the wind blocker frame is designed to direct airflow towards the middle section of the blade, thereby creating a compression effect and blocking any air from escaping. This special design reduces the blade’s noise and vibration, creating a perfect balance between power and sound.
Patented Riing LED
The color and brightness uniformity of the patented LED ring is visible from all directions and adds style to the chassis.
China Patent : CN204498539U
US Patent : US9,506,663

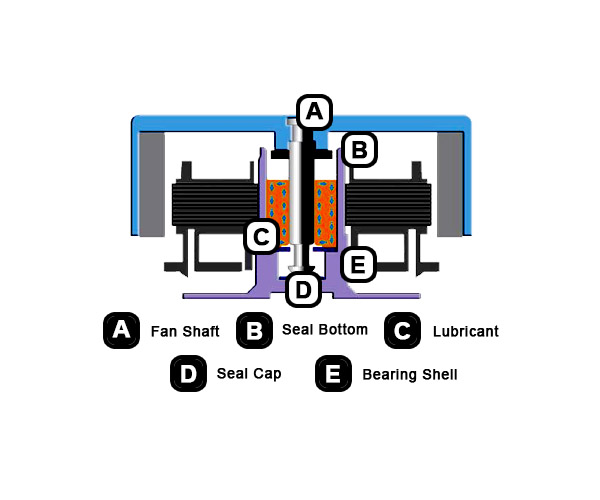

Hydraulic Bearing Design
The hydraulic bearing self-lubricates with a high quality, friction-reducing substance that reduces operating noise and improves efficiency. The seal cap prevents leakage of the lubricant, and improves the lifespan of the unit.
Optimized Silent Operation

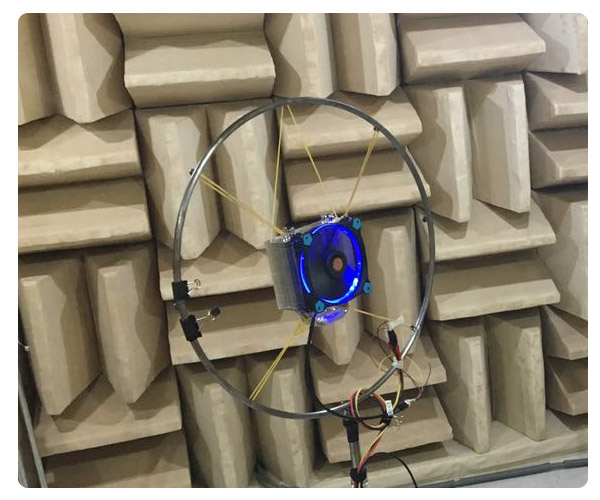

For acoustic test, Riing Silent 12 was tested in a semi-anechoic chamber which includes anti-vibration, sound-proof, and sound-absorbing effect.
With a LNC (Low-Noise Cable), Riing Silent 12 can reduce the noise level by 29% from 18.8 dBA to 13.4 dBA, and 50% of fan speed.

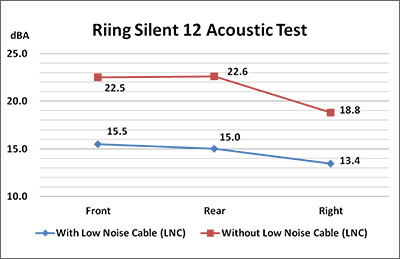

Riing Silent 12 Acoustic Test Result (Without Background Noise)
*Note: Lower is better
Thermal Image Demonstrates for Heat Distribution
Riing Silent 12 delivers outstanding cooling performance, keeping the temperature between 30℃ and 32.5℃ (ambient temperature is 20℃) @Intel® Core™ i7-4770K 3.8GHz at full load.
Superior Heat Dissipation
Optimized 0.4mm thickness aluminum fins with 2.2mm air gap, and 4 x Ø6mm solid copper heat-pipes are designed for rapid heat dissipation, allowing maximum heat conductivity. The tower’s side flow design delivers the best cooling performance. In addition, the heat-pipes are in continuous direct contact with the CPU to ensure fast and efficient heat dissipation.

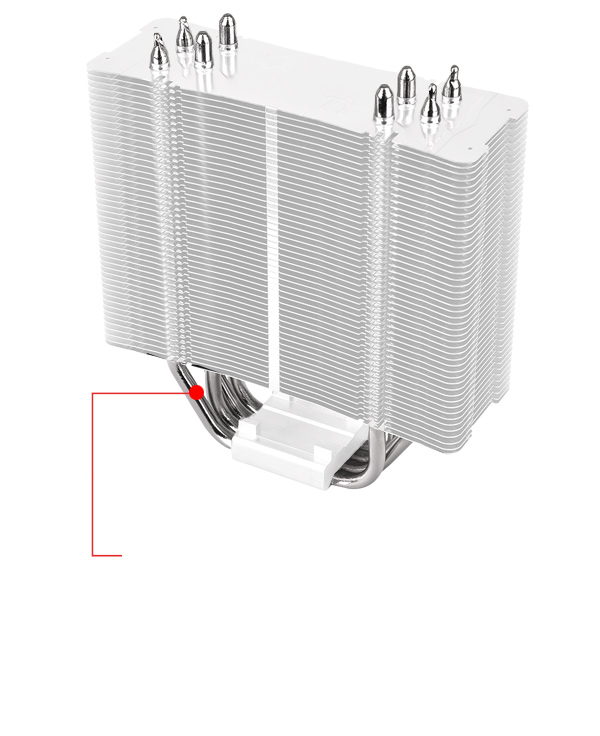

4 x Ø6mm U-shape copper heatpipes

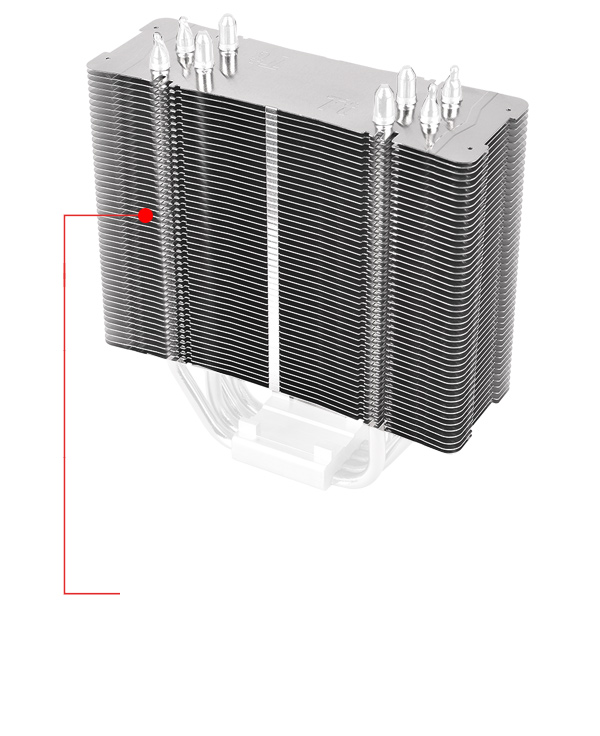

Aluminum fins with 2.2mm air gap
4 heatpipes directly contact with the CPU
Anti-Vibration Mounting Systems with Non-Interference Cooling
Anti-vibration rubber pads strengthen stability during operation and provide hassle-free usage for 80% protection coverage, including all four corners. And Riing Silent 12 solves the co-existing problem of high performance RAM and CPU coolers, achieving the best RAM clearance.
| P/N | CL-P022-AL12RE-A |
|---|---|
| Compatibility | Intel LGA 2066/2011-3/2011/1366/1200/1156/1155/1151/1150/775 AMD AM4/FM2/FM1/AM3+/AM3/AM2+/AM2 |
| Dimensions | 159 x 140 x 74 mm (H x W x L) |
| Heatsink Material | Aluminum Fins Copper Heatpipes |
| Heatpipe | Φ6mm x 4 pcs |
| Fan Dimension | 120 x 120 x 25 mm(L xW x H) |
| Fan Speed | 500~1400 RPM 300~700 RPM (with LNC ) |
| Rated Voltage | 12V |
| Start Voltage | 9.0 V |
| Rated Current | 0.21 A |
| Power Input | 2.52 W |
| Air Flow | 53 CFM |
| Static Pressure | 1.23 mm-H2O |
| Acoustical Noise | 18 ±1 dBA 13 ±1 dBA (with LNC) |
| Life time/Fan Life time | 40,000 hours |
| Cooling Power | 150 W |
| Weight | 825 g |
