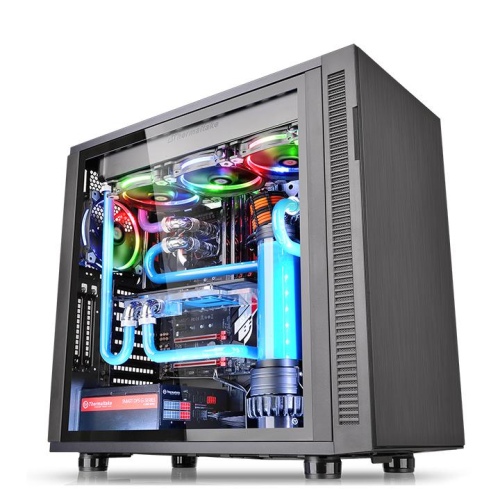

Thermaltake Suppressor F31 Tempered Glass Edition Mid Tower Chassis
TThe Suppressor F31 Tempered Glass Edition mid-tower chassis features a durable 4mm thick tempered glass window, riser GPU support bracket with optional PCI-e riser cable, a preinstalled 140mm Riing Blue fan, leading-edge sound reduction panels on all sides, and its outstanding system ventilation. With the unparalleled expandability for high-end configurations and liquid cooling system, the Suppressor F31 supports the latest PC hardware, and all high-end GPU solutions. Thermaltake Suppressor F31 demonstrates the perfect balance in silent operation and cooling performance.
Thermaltake Suppressor F31 Tempered Glass Edition
Tt LCS Certified
Tt LCS Certified is a Thermaltake exclusive certification applied to only products that pass the design and hardcore enthusiasts standards that a true LCS chassis should be held to. The Tt LCS certification was created so that we at Thermaltake can designate to all power users which chassis have been tested to be best compatible with extreme liquid cooling configurations to ensure you get the best performance from the best features and fitment.

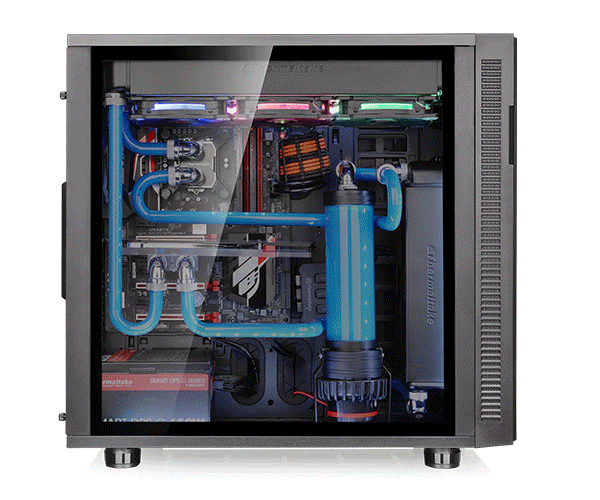

4mm Thick Tempered Glass Window with Gorgeous View
The tempered glass features 4mm thickness that guarantees the durability of the window. Moreover, the enlarged window design permits users to fully display and admire all components of the liquid-cooling system. Show off your dedicated set in the subtlest manner!
Fully Modular Concept
The Suppressor F31 comes with fully modular drive cages that provide the ease of installation/removal and maximize the interior space for custom cooling loop. Especially, the tool-less drive bay design allows users to freely interchange the 3.5” and 2.5” hard-drives to suit their particular needs. The dual drive bay concept of “2+3” offers a good ratio for accessories and storage devices.
Riser GPU Support Bracket
Specially designed with dual GPU placement, the Suppressor F31 has the support for vertical graphic card layout with dual PCI-E slots design. The PCI-e riser cable is optional. Plus, the included riser GPU support bracket not only can prevent the graphic card from sagging, but also helps to reduce the weight on the motherboard.
Thermaltake PCI-e X16 Riser Cable (Optional) – Support a wide range of GPU solutions.
Modular Sound-Damping Design for Silent Cooling System
Built-in sound-damping panels incorporated the top, front, and side panels of the Suppressor F31 to reinforce noise reduction for silent operation. Optimizing cooling performance with removable mounted top panels to expand cooling configurations for both air and liquid cooling solutions. Design and build a custom leading-edge silent operation PC with options for 120/140/200mm cooling fans and liquid cooling support for single, dual and triple radiator applications.
Made for High-End PCs with Outstanding Expandability
The Suppressor F31 features its cable management with maximum 50mm in width, and supports up to a tower CPU cooler with maximum height 180mm, and a dual expansion slot VGA of up to 420mm in length without HDD rack. Moreover, the Suppressor F31 has the ability to accommodate multiple 3.5”/2.5” and 5.25” storage devices at the same time. Most importantly, the hidden drive bay design guarantees expandability for more liquid cooling components.
Advanced Ventilation
Featuring a width of 250mm, the Suppressor F31 enables users to build a complete high-end system that supports up to triple 120mm, double 140mm liquid cooling radiators or up to 200mm case fans. Additionally, to deliver superior airflow, the Suppressor F31 is preinstalled with a 140mm turban fan at the front, and a 140mm Riing Blue fan at the rear.
Patented Riing 14 LED Blue – A 140mm patented blue LED Ring radiator fan with high-static pressure design.
Learn More
Suppressor F31 Radiator Supporting List
| Radiator Compatibility List | |||||||
| 120 mm |
140 mm |
240 mm |
280 mm |
360 mm |
|||
| Front | * | * | * | * | * | ||
| Top | * | * | * | * | * | ||
| Rear | * | * | |||||
| Bottom | * | * | |||||
| All-in-One Compatibility List (Water 3.0 Series) | |||
| 120mm (Performer/Pro) | 240mm (Extreme) | 360mm (Ultimate) | |
| Top |
*
|
*
|
*
|
|
Rear
|
*
|
|
|
Suppressor F31 Fan Supporting List
| Fan Compatibility List | |||
| 120mm | 140mm | 200mm | |
| Front |
2
|
2
|
1
|
|
Top
|
3
|
3
|
2
|
| Rear |
1
|
1
|
|
|
Bottom
|
2
|
2
|
|
| Thermaltake Compatible Fan | |||
| 120mm | 140mm | 200mm | |
| Pure Fan Series |
*
|
*
|
*
|
| Luna Fan Series |
*
|
*
|
*
|
| Riing Fan Series |
*
|
*
|
|
| P/N | CA-1E3-00M1WN-03 |
|---|---|
| Séries | Suppressor |
| TYPE DE BOITIER | Mid Tower |
| DIMENSIONS (H x L x P) | 497 x 250 x 515 mm (19.5 x 9.8 x 20.3 inch) |
| POIDS NET | 10.6 kg / 23.4 lb |
| PANNEAU LATÉRAL | Tempered Glass (4mm thickness) |
| COULEUR | Exterior & Interior : Black |
| MATÉRIEL | SPCC |
| SYSTÈME DE REFROIDISSEMENT | Front (intake) : 140 x 140 x 25 mm Turbo fan (1000rpm, 16dBA) Rear (exhaust) : 140 x 140 x 25 mm Riing LED Blue fan (1400rpm, 28dBA) x 1 (1000rpm, 22dBA with LNC) |
| BAIES DE LECTEUR | Accessible :2 x 5.25’’ Hidden:3 x 3.5’’ or 2.5’’ (HDD Cage) |
| FENTES D'EXTENSION | 8 + 2 |
| CARTES MÈRES | 6.7” x 6.7” (Mini ITX), 9.6” x 9.6” (Micro ATX), 12” x 9.6” (ATX) |
| LCS Upgradable | Supports 1/2”、3/8”、1/4” water tube |
| PORT E/S | USB 3.0 x 2, USB 2.0 x 2, HD Audio x 1 |
| Bloc Alimentation | Standard PS2 PSU (optional) |
| SOUTIEN DES VENTILATEURS | Front: 2 x 120mm , 2 x 140mm , 1 x 200mm Top:3 x 120mm , 3 x 140mm , 2 x 200mm Rear:1 x 120mm , 1 x 140mm Bottom: 2 x 120mm , 2 x 140mm |
| SUPPORT RADIATEUR | Front: 1 x 360mm , 1 x 280mm Top: 1 x 360mm , 1 x 280mm Rear:1 x 120mm , 1 x 140mm Bottom: 1 x 120mm , 1 x 140mm |
| AUTORISATION | CPU cooler height limitation: 180mm VGA length limitation: 278mm(with HDD rack) 420mm(without HDD rack) PSU length limitation: 180mm (With One Bottom Fan) 220mm (Without Bottom Fan) |
User Manual
- File Name
- La description
- Size
- Version
- Release Date
-
Manual
- Multi-language
- 7.1 MB
- 2016-12-01
