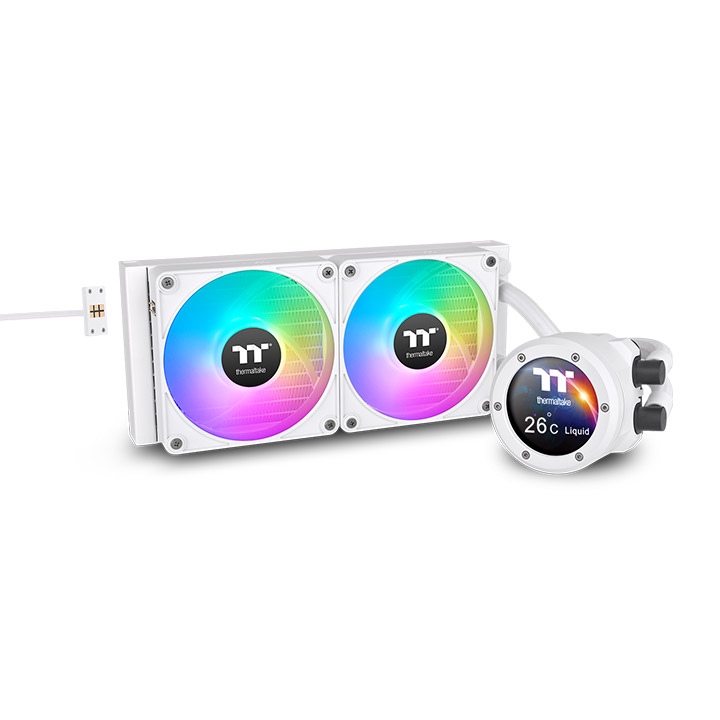

TH240 V2 Ultra EX ARGB Sync All-In-One Liquid Cooler - Snow Edition
Full Modular Design
The CT EX ARGB Fans come with the new MagForce 2.0 which allows you to easily connect AIO fans with only one cable. Alternatively, you may also use them as individual fans with the two different cables in the package.
The video is for reference only.
Steady Connection with MagForce 2.0
Evolved from SWAFAN EX’s Magnetic Force Design, the new MagForce 2.0 Pogo pin contact pads are TWO times larger for greater tolerance. This enhancement significantly reduces the potential faulty alignment no matter you are daisy-chaining fans together or connecting fans with cable, further boosting the installation efficiency and streamlining the building experience.

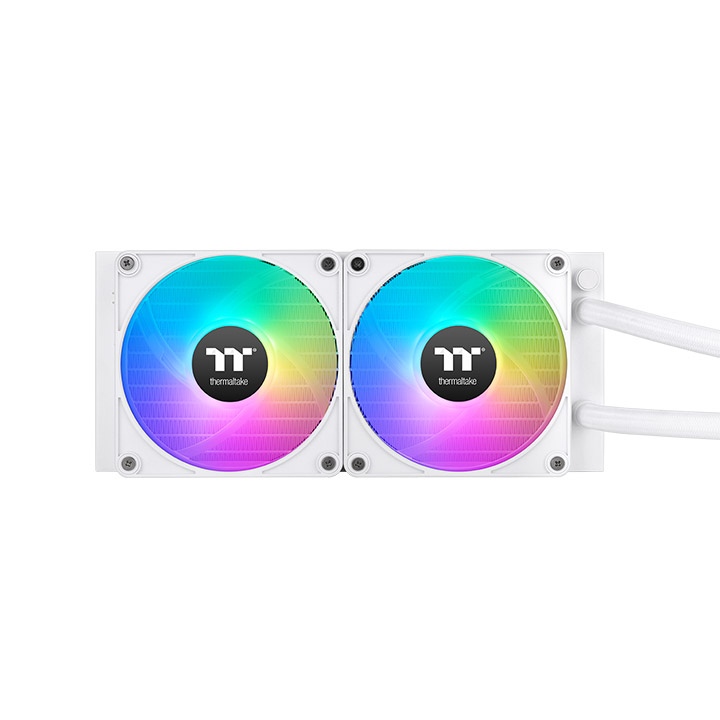

Sync with CT120 EX ARGB Sync Fans
Utilizing the CT120 EX ARGB Sync White Fans on this model, not only you can match up some of our chassis’ pre-installed fans, but you can unify your fans with your build! The CT120 EX ARGB Sync White provides 68 CFM of air flow with 2.95 mm-H2O static pressure while maintaining 28.5 dB-A noise levels.
Note: CT Fans requires motherboard sync software to control ARGB lighting effects.
Enhanced Cooling Surface With A Compact Design

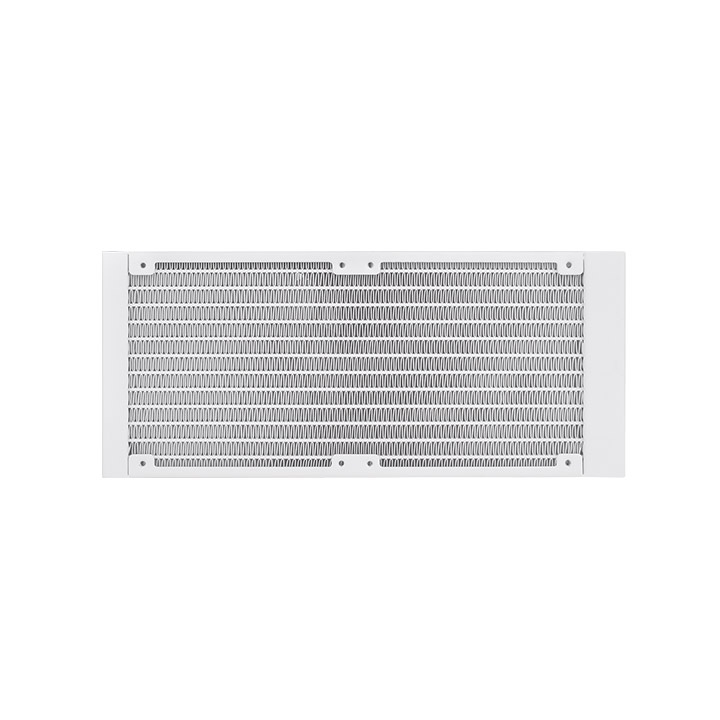

The TH V2 Ultra EX ARGB Sync Series has a 27mm slim radiator with a thickened 20mm copper chamber, ensuring the same easy installation but with even better cooling performance.

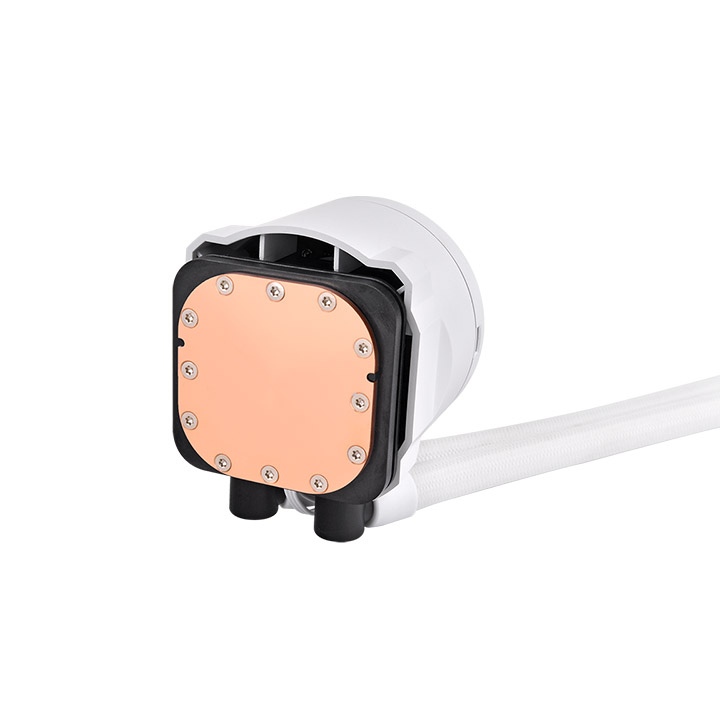

Keep it COLD with Copper
The high-performance copper base plate accelerates heat conductivity. The high-quality and reliable pump enables maximum water circulation, keeping the copper plate continuously cool. The low evaporation tube effectively decreases the loss of coolant; therefore, no refill is required.

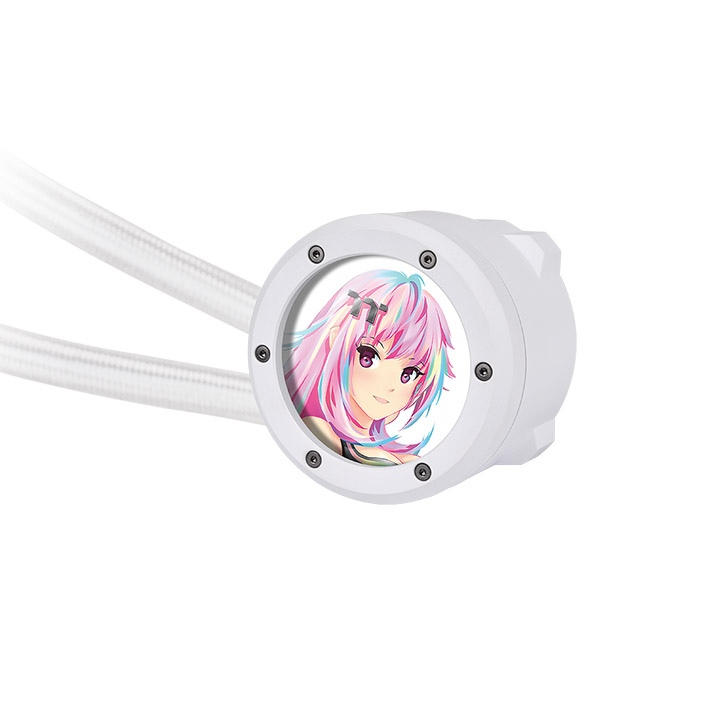

Personalize Your LCD Display
The TH V2 Ultra EX ARGB Sync Snow Series features an industrial-inspired design to freshen up its 2.1” LCD Display. The highly customizable LCD Display has a 480*480 high resolution, allowing you to showcase 16.8M color videos or photos effortlessly, enhancing the visual aesthetics of your build.
Fully Customizable with TT RGB Plus 2.0
Monitor frequency and real-time temperature directly from
the 2.1” LCD display, or customize start-up and standby screens by uploading images or GIFs
to add extra flair with the TT RGB Plus 2.0 software.
Caution:
- The Ultra Series products are only supported by the TT RGB Plus 2.0. Software.
- File size is restrict to 20 MB
Check out more animated GIFs for your AIO displays
here.
Start-up & Standby Screen Setting
Start-up & Standby Screen Setting
Quick Upload Visuals with TT PlayLink App
With the TT PlayLink app, customizing your LCD displays is much easier through a smartphone.
Whether uploading pictures and videos from your gallery or capturing live moments with the camera or streaming functions, personalizing your screen is more convenient than ever!
*The video is for reference only.
TT RGB PLUS Ecosystem
Light up your system with almost limitless possibilities and synchronize your TT RGB PLUS compatible products to create a RGB ecosystem that is truly unique to you.
Logiciel TT RGB PLUS 2.0
La nouvelle version du logiciel breveté TT RGB PLUS de Thermaltake, offrant plus d'effets d'éclairage et de fonctions de surveillance PC.
Mise en garde:
TT RGB PLUS 2.0 et TT RGB PLUS 1.0 s'écraseront mutuellement; les utilisateurs ne peuvent installer qu'une seule version de TT RGB PLUS à la fois.
TT PlayLink Mobile App
TT PlayLink is a new mobile application that simplifies the customization of PC LCD screens, enabling quick visual uploads and live streaming from a smartphone.
Sync with Motherboard RGB Software
Designed to synchronize with ASUS Aura Sync, GIGABYTE RGB Fusion, MSI Mystic Light Sync, and ASRock Polychrome. It supports motherboards with a 5V addressable RGB header, allowing you to control the lights directly from the software mentioned above without installing any extra lighting software or controllers. For more details, please visit ASUS, GIGABYTE, MSI, and ASRock official websites.
-
Aura Addressable Header
ASUS -
Digital Pin Header
GIGABYTE -
JRAINBOW Header
MSI -
Addressable RGB LED Header
ASRock
| Category | Caution |
|---|---|
| Chassis, ARGB Fan, ARGB AIO |
|
| RGB Memory, VGA Waterblock, Distro Plate |
|
| P/N | CL-W425-PL12SW-A |
|---|---|
| Pump | Motor Speed : PWM 1500~3300 RPM Rated Voltage : 12V Rated Current : 0.43A Power Input : 5.16W |
| CPU Display | Rated Voltage : 5V Power Input : 1.15W Display Type : 2.1”TFT-LCD Display Resolution : 480x480 (RGB) px |
| Display Support | Interface : Micro USB to USB (9PIN) System Compatibility : Windows 10 / 11 |
| Water Block | Material : Copper |
| Fan | Dimension : 120 x 120 x 25 mm Speed : PWM 500~2000 R.P.M Rated Voltage : 12V/5V Rated Current : 0.19A & 0.32A (one fan) Power Input : 2.28W & 1.6W (one fan) Air Flow. : 68 CFM (one fan) Static Pressure. : 2.95 mm-H2O (one fan) Noise Level. : 28.5 dB-A |
| Tube | Length : 460mm Material : Rubber |
| Radiator | Dimension : 276 x 120 x 27 mm Material : Aluminum |
| Compatibility | Intel: LGA 2066/2011-3/2011/1851/1700/1200/1156/1155/1151/1150 AMD: AM5/AM4/AM3+/AM3/AM2+/AM2/FM2/FM1 |
