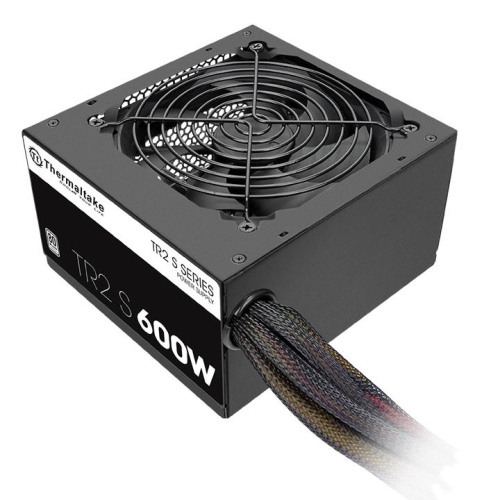

Thermaltake TR2 S 600W
Incorporating various high-quality components, the new TR2 S Series – models are rated from 500W to 700W – saves energy through its high efficiency of up to 86% and accommodates any mainstream build with the most demanding requirements. An embedded intelligent cooling fan delivers excellent airflow at an exceptionally low noise level. Additionally, the Single +12V rail design enables non-stop usage with stable and reliable performance.
Ultra Quiet 120mm Fan
TR2 S Series adopt 120mm cooling fan delivers excellent airflow at an exceptionally low noise level.
Multiple Connectors
The cables used for TR2 S Series are all sleeved. TR2 S 600W connector’s specification as below:
80 PLUS 230V Standard Certified and Kaby Lake-Ready
TR2 S Series saves energy through its high energy efficiency of up to 86% and is 80 PLUS® 230V Standard certified. Additionally, TR2 S Series has been optimized to work with Intel’s new, Seventh-generation Kaby Lake processors to achieve maximum energy savings.
82%, 85%, 82% efficiency at 20%, 50%, 100% Loading Guaranteed
High-Quality Components
High quality components enable non-stop usage with stable and reliable performance, no more capacitor explosion and leakage.
Single +12V Output
TR2 S Series is equipped with powerful +12V rails, superior performance under all types of system loading. Please see the output specification below:
| AC INPUT |
Input Voltage: 230V |
||||
| DC OUTPUT | +3.3V | +5V | +12V | -12V | +5Vsb |
| Max Output Current | 22A |
17A |
42A |
0.5A |
2.5A |
| Max Output Power |
105W |
504W |
6.0W |
12.5W |
|
| Continuous Power |
600W |
||||
| P/N | PS-TRS-0600NPCWEU-2 |
|---|---|
| watts | 600W |
| Ventilateur RGB | Non |
| Format | ATX |
| Model | TRS-600AH2NK |
| Type | Intel ATX 12V 2.3 |
| Max. Output Capacity | 600W |
| COULEUR | Black |
| Dimension ( W / H / D ) | 86mm x 150mm x 140mm |
| PFC (Power Factor Correction) | Active PFC |
| Power Good Signal | 100-500 msec |
| Hold Up Time | 16msec (minimum) within 60% load |
| Input Current | 8A max |
| Input Frequency Range | 50 Hz - 60 Hz |
| Input Voltage | 230 Vac |
| Operating Temperature | 5℃ to +40℃ |
| Operating Humidity | 20% to 85%,non-condensing |
| Storage Temperature | -40 ℃ to +55 ℃ |
| Storage Humidity | 10% to 95%, non-condensing |
| SYSTÈME DE REFROIDISSEMENT | 120mm Fan: 1800 R.P.M. ± 10% |
| Efficiency | 82-86% efficiency @ 20-100% load |
| MTBF | 100,000 hrs minimum |
| Safety Approval | CE/CB/TUV |
| PCI-E 6+2pin | PCI-E 6+2pin x 2 |
