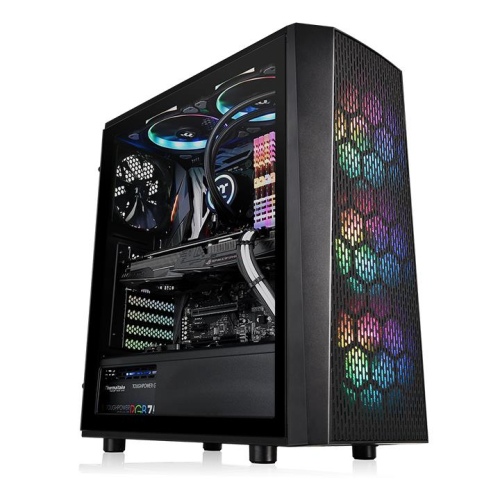

Built for those who need all the cooling their case can handle, the Versa J24 TG ARGB is custom built for what the very best tempered glass and mesh paneling have to offer. As a bonus style point, the J24 ARGB comes with three 120mm 5V ARGB LED front fans which are addressable to deliver 16.8 million-color RGB illumination and awesome ventilation.
This model comes ready to sync with RGB capable motherboards from Asus, Gigabyte, MSI and AsRock. Supporting the latest PC hardware and high-end GPU solutions, it gives you all the utility benefits you need.
* The image is for reference only.
* Three 120mm 5V addressable ARGB LED front fans and one standard 120mm rear fan are included.
3 Built-in 120mm 5V ARGB LED Fans
The J24 ARGB edition comes with three 120mm 5V ARGB LED front fans featuring 9 addressable LEDs, hydraulic bearings, and 16.8 million-color illumination to guarantee high airflow and some awesome lighting modes.
The 5V ARGB LED fans can be controlled using a simple interface built into the I/O panel that cycles through 7 different lighting modes and a range of different color options or through your motherboard software.
* The image is for reference only.
* Three 120mm 5V addressable ARGB LED front fans and one standard 120mm rear fan are included.
Thanks to the built-in 5V RGB switch board, J24 TG ARGB is able to deliver addressable RGB lighting customization through the I/O port RGB button or by synchronizing with ASUS Aura Sync, GIGABYTE RGB Fusion, MSI Mystic Light Sync and ASRock Polychrome motherboards.
With a built-in power supply cover, the J24 TG ARGB features plenty of ventilation holes to keep your power supply cool while also hiding away all those cables.
Tempered Glass Window
The left side of the J24 TG ARGB features a full length 4mm thick tempered glass panel, which is more durable and less prone to scratches and dust than acrylic panels. The tempered glass window is designed to slide into place and can be attached firmly with just two screws at the rear of the panel.
* The image is for reference only.
* Three 120mm 5V addressable ARGB LED front fans and one standard 120mm rear fan are included.
Tool-Free Installation
Forget fiddly drive bays and running out of space where you need it. The Versa J24 TG ARGB features totally tool-less drive bays that are interchangeable between above and below the power supply cover, as well as behind the motherboard tray for a total of seven expansion slots.
3.5” or 2.5” HDD Drive Compatible
Don’t skimp on the power – the J24 TG ARGB gives you all the space you need for high-end hardware. It can fit a tower CPU cooler with a maximum height of 160mm, a dual expansion slot VGA cards of up to 330mm in length, and a power supply with length of up to 160mm.
* The image is for reference only.
* Three 120mm 5V addressable ARGB LED front fans and one standard 120mm rear fan are included.
The J24 TG ARGB is designed to make the most of that mesh front panel, whether you prefer air cooling or liquid. It comes fitted with one exhaust fan at the rear and three 5V ARGB fans in the front, but you can also comfortably fit two more 120/140mm fans at the top.
If you prefer liquid cooling, you can fit a 360mm radiator behind the front panel and comfortably cool your internals that way.
* The image is for reference only.
* Three 120mm 5V addressable ARGB LED front fans and one standard 120mm rear fan are included.
The Versa J24 TG ARGB puts airflow first, offering full mesh front and top panels, as well as angular modern styling. This case is all about getting work done and looking cool while you do it.
* The image is for reference only.
* Three 120mm 5V addressable ARGB LED front fans and one standard 120mm rear fan are included.
Handy I/O Ports
The top-front panel features two USB 3.0 data ports as well as audio passthrough and the RGB lighting control switch.
|
|||||||||||||||||||||||||||||||||||
|
|||||||||||||||||||||||||||||||||||
Fan Supporting List
|
|||||||||||||||||||||||||
|
||||||||||||||||||||
Sync with Motherboard RGB Software
Designed to synchronize with ASUS Aura Sync, GIGABYTE RGB Fusion, MSI Mystic Light Sync, and ASRock Polychrome. It supports motherboards with a 5V addressable RGB header, allowing you to control the lights directly from the software mentioned above without installing any extra lighting software or controllers. For more details, please visit ASUS, GIGABYTE, MSI, and ASRock official websites.
-
Aura Addressable Header
ASUS -
Digital Pin Header
GIGABYTE -
JRAINBOW Header
MSI -
Addressable RGB LED Header
ASRock
| Category | Caution |
|---|---|
| Chassis, ARGB Fan, ARGB AIO |
|
| RGB Memory, VGA Waterblock, Distro Plate |
|
| P/N | CA-1L7-00M1WN-03 |
|---|---|
| Séries | Versa |
| Model | Versa J24 TG ARGB |
| TYPE DE BOITIER | Middle tower |
| DIMENSIONS (H x L x P) | 462 x 206 x 414 mm (18.48 x 8.2 x 16.55 inch) |
| POIDS NET | 6.2 kg / 13.67 lb |
| PANNEAU LATÉRAL | 3mm Tempered Glass x1 |
| COULEUR | Exterior & Interior : Black |
| MATÉRIEL | SPCC |
| SYSTÈME DE REFROIDISSEMENT | Rear (exhaust) : 120 x 120 x 25 mm fan (1000rpm, 16 dBA) Front (intake) : 120 x 120 x 25 mm ARGB fan x3 (1000rpm, 27.2 dBA) |
| BAIES DE LECTEUR | 2 x 2.5”(HDD Bracket) 2 x 3.5“ or 2.5” (HDD Tray) |
| FENTES D'EXTENSION | 7 |
| CARTES MÈRES | 6.7” x 6.7” (Mini ITX), 9.6” x 9.6” (Micro ATX), 12” x 9.6” (ATX) |
| PORT E/S | USB 3.0 x 2, HD Audio x 1 |
| Bloc Alimentation | Standard PS2 PSU (optional) |
| SOUTIEN DES VENTILATEURS | Front: 3 x 120mm, 2 x 140mm Top: 2 x 120mm, 2 x 140mm Rear: 1 x 120mm |
| SUPPORT RADIATEUR | Front: 1 x 360mm Rear: 1 x 120mm |
| AUTORISATION | CPU cooler height limitation: 160mm VGA length limitation: 330mm PSU length limitation: 160mm |
